HVAC/Condenser, Compressor & Lines for 2018 Cadillac CTS

Select Condenser, Compressor & Lines Part

2018 Cadillac CTS

Change vehicle

No. Part # Part # / Description List Price Price
1 22799389 22799389 / AC & Heater Case

$42.46 $26.26
2 23291757 23291757 / Seal Kit

$49.61 $26.91
3 22799374 22799374 / Air Inlet

$53.90 $33.33
4 22799379 22799379 / Blower Case

UPPER

$18.65 $11.53
5 84384898 84384898 / Blower Case

LOWER

$63.92 $39.53
6 13508023 13508023 / Filter

$27.72 $15.04
7 22799375 22799375 / Filter Cover

$6.60 $4.08
8 22799385 22799385 / Instrument Panel Air Duct

Lower Duct

$33.63 $20.80
9 84280246 84280246 / Heater Core

$77.74 $42.17
10 23183144 23183144 / Heater Case

$40.39 $24.99
11 23375992 23375992 / Evaporator Core

$199.90 $108.45
12 22799445 22799445 / Expansion Valve

$82.12 $44.55
13 22799387 22799387 / Evaporator Case

$44.97 $27.81
14 22799453 22799453 / HVAC Unit Case Cover

Cover

EVAPORATOR TUBE, UPPER

$11.10 $6.87
15 22799454 22799454 / HVAC Unit Case Cover

Cover

EVAPORATOR TUBE, LOWER

$13.10 $8.10
16 25770696 25770696 / HVAC Air Inlet Door Actuator

Actuator

AIR INLET

$32.14 $17.44
17 23291750 23291750 / Actuator

Actuator, RIGHT

TEMP VALVE, W/ O REAR CLIMATE CONTROL, W/ 7 PIN CONNECTOR

$40.71 $22.08
17 23291755 23291755 / HVAC Blend Door Actuator

Actuator, RIGHT

TEMP VALVE, W/ REAR CLIMATE CONTROL, TEMP VALVE, W/ REAR CLIMATE CONTROL

$41.96 $22.76
18 23291751 23291751 / Actuator

Actuator, LEFT

TEMP VALVE, W/ O REAR CLIMATE CONTROL, W/ 7 PIN CONNECTOR

$42.04 $22.81
18 23291752 23291752 / Actuator

Actuator, LEFT

TEMP VALVE, W/ REAR CLIMATE CONTROL, TEMP VALVE, W/ REAR CLIMATE CONTROL

$41.96 $22.76
19 23291749 23291749 / Actuator

MODE VALVE, W/ O REAR CLIMATE CONTROL, MODE VALVE, W/ O REAR CLIMATE CONTROL

$36.31 $19.70
19 23291756 23291756 / HVAC Defrost Mode Door Actuator

Actuator

MODE VALVE, W/ REAR CLIMATE CONTROL, MODE VALVE, W/ REAR CLIMATE CONTROL

$42.55 $23.09
20 23183141 23183141 / Actuator Cover

W/ O RR CLIMATE CNTL

$12.84 $7.94
20 23183142 23183142 / Actuator Cover

W/ RR CLIMATE CNTL

$19.67 $12.16
21 84392186 84392186 / Blower Motor

$186.80 $101.34
22 22799339 22799339 / Wire

$30.42 $18.81
23 23406713 23406713 / Harness

W/ O RR CLIMATE CNTL

$69.15 $42.77
23 23406714 23406714 / Harness

W/ REAR CLIMATE CONTROL, W/ O AUTO STOP-GO

$85.19 $52.70
23 23406715 23406715 / Harness

W/ REAR CLIMATE CONTROL, W/ AUTO STOP-GO

$119.68 $74.02
24 25917885 25917885 / Temp Sensor

W/ RR CLIMATE CNTL

$17.37 $10.73
24 22801046 22801046 / Temp Sensor

W/ O RR CLIMATE CNTL

$11.22 $6.09
25 22799460 22799460 / Temp Aspirator

$15.66 $8.50

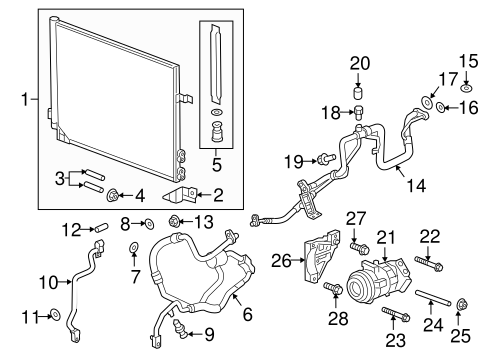

No. Part # Part # / Description List Price Price
3 22868960 22868960 / Condenser Stud

6.2 LITER SUPERCHARGED

$4.37 $2.70
4 11546377 11546377 / Compressor Nut

Condenser Nut

6.2 LITER SUPERCHARGED

$0.25 $0.16
5 89023442 89023442 / A/C Receiver Drier

Dehydrator

6.2 LITER SUPERCHARGED

$18.46 $10.03
6 84008572 84008572 / Discharge Hose

6.2 LITER SUPERCHARGED

$185.83 $100.82
7 52474373 52474373 / A/C Line O-Ring

Discharge Hose Seal

6.2 LITER SUPERCHARGED, 19MM

$7.28 $3.95
8 2724966 2724966 / A/C Line O-Ring

Discharge Hose Seal

6.2 LITER SUPERCHARGED, 25MM

$11.33 $6.15
9 13587668 13587668 / Pressure Sensor

6.2 LITER SUPERCHARGED

$67.63 $36.69
10 23108201 23108201 / Front AC Tube

6.2 LITER SUPERCHARGED

$100.08 $54.30
11 52474373 52474373 / A/C Line O-Ring

Front AC Tube Seal

6.2 LITER SUPERCHARGED

$7.28 $3.95
12 11561065 11561065 / Reservoir Stud

Front AC Tube Stud

6.2 LITER SUPERCHARGED

$6.55 $4.05
13 11546377 11546377 / Compressor Nut

Front AC Tube Nut

6.2 LITER SUPERCHARGED

$0.25 $0.16
14 84341884 84341884 / Rear AC Tube

6.2 LITER SUPERCHARGED, W/ R134-A

$176.93 $95.99
14 84498818 84498818 / F (S)Hose

Rear AC Tube

6.2 LITER SUPERCHARGED, W/ R-1234YF

$169.52 $91.96
15 52477087 52477087 / A/C Refrigerant Line O-Ring Replaced by Part Number 13579649

6.2 LITER SUPERCHARGED, 16MM

- -
16 2724966 2724966 / A/C Line O-Ring

Rear AC Tube Seal

6.2 LITER SUPERCHARGED, 25MM

$11.33 $6.15
18 3041827 3041827 / Pressure Sensor Valve

Rear AC Tube Valve

6.2 LITER SUPERCHARGED, UPPER

$11.94 $6.47
20 22758701 22758701 / Hose & Tube Assembly Cap

Rear AC Tube Cap

6.2 LITER SUPERCHARGED

$29.52 $16.01
22 11588735 11588735 / Energy Absorber Front Bolt

Compressor Mount Bolt

6.2 LITER SUPERCHARGED, LONG

$5.37 $3.32
23 11588732 11588732 / Compressor Mount Bolt

6.2 LITER SUPERCHARGED, SHORT

$4.49 $2.78
24 11561936 11561936 / Compressor Stud

6.2 LITER SUPERCHARGED

$8.04 $4.97
25 11514596 11514596 / Fender Retainer

Compressor Nut

6.2 LITER SUPERCHARGED

$5.20 $3.21
26 12643221 12643221 / Mount Bracket

Bracket

6.2 LITER SUPERCHARGED

$80.91 $50.04
27 11588741 11588741 / Trans Mount Bracket Bolt

Bracket Bolt

6.2 LITER SUPERCHARGED, UPPER

$6.12 $3.32
28 11610074 11610074 / Engine Crankshaft Main Bearing Cap Bolt

Bracket Bolt

6.2 LITER SUPERCHARGED, LOWER

$4.65 $2.88
1 23455461 23455461 / Condenser

CTS; 6.2L

$182.62 $118.88
21 84313365 84313365 / Compressor Kit

Compressor

CTS; 6.2L

$443.36 $240.52
No. Part # Part # / Description List Price Price
N/A 84498818 84498818 / F (S)Hose

Discharge Hose

CTS; 6.2L; W/ LOW GWP

$169.52 $91.96
N/A 84252714 84252714 / Clutch & Pulley

Clutch

CTS; 6.2L

$190.11 $103.13
No. Part # Part # / Description List Price Price
N/A 84313367 84313367 / A/C Compressor Clutch

Clutch & Pulley

6.2 LITER SUPERCHARGED, W/ CODE VRJ

$193.74 $105.10
